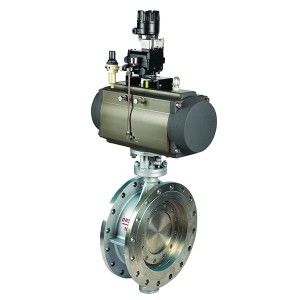

Pneumatic tripple eccentric butterfly valve introduction
Pneumatic triple eccentric butterfly valve is composed of metal seated butterfly valve with flange type,wafer type or lug type and double or single acting pneumatic actuator,Pneumatic triple eccentric butterfly valve is used in petroleum, chemical industry, electric power, metallurgy, food, light textile, papermaking and other industries,Pneumatic triple eccentric butterfly valve can be installed in the temperature ≤425℃, medium for gas, air, steam, water, sea water, oil and other industrial pipe network for regulating flow and cutting off medium.The driving forms of butterfly valve include manual, worm drive, pneumatic, hydraulic, electric, electro-hydraulic linkage and other actuators, which can realize remote control and automatic operation.Pneumatic triple eccentric butterfly valve structure adopts the principle of tripple eccentric structure, the valve seat adopts the hard and soft sealing compatible multi-level structure, and the machining is fine.This product is composed of valve body, butterfly plate, multi-level seat, stem, transmission mechanism and other main components.Therefore, Pneumatic triple eccentric butterfly valve is applied to pipelines of corrosive media such as metallurgy, electric power, petroleum, chemical industry, air, gas, combustible gas and water supply and drainage.
Pneumatic tripple eccentric butterfly valve Product Features
Pneumatic triple eccentric butterfly valve is designed on the principle of three eccentricity, the space movement track of the sealing surface reaches the ideal, there is no friction between the sealing surface, there is no interference, and the sealing material is chosen properly, so that the sealing, corrosion resistance, high temperature resistance and wear resistance of the butterfly valve are guaranteed.Its main features are as follows:
1. Small opening torque, flexible, convenient and labor-saving.
2. Triple eccentric core structure makes the butterfly plate more and more tight, and its sealing performance is reliable, so that there is no leakage.
3, high pressure resistance, corrosion resistance, wear resistance, long use, etc.
Pneumatic tripple eccentric butterfly valve specification
Body: Stainless Steel,CF8,CF8M,CF3M, Carbon Steel
Disc: Stainless Steel CF3M,CF3,CF8M, Double Stainless Steel,2507,1.4529
Stem: Stainless Steel
Seats: PTFE,RPTFE
Size: 5″ – 40″ (25mm – 1000mm)
Flange accommodation: EN 1092 PN10/PN16
ASME Class 150LB,300LB,600LB
AS 4087 PN 10/ PN16/PN25/PN40
JIS /10K/20K
Pneumatic tripple eccentric butterfly valve technical parameter
| Optional functions of electric actuator | double acting, single acting |
| Optional models of electric actuator | AT series, AW series |
| Voltage | AC110V, AC220V, AC24V,DC24V |
| Air source pressure | 2bar-8bar |
| Nominal diameter | DN50mm ~ DN1200mm |
| Nominal pressure | PN1.0MPa~PN2.5MPa |
| Applicable temperature | -30~ +425℃ |
| Connection mode | sandwich type |
| Body material | carbon steel, stainless steel |
| Valve plate material | carbon steel, stainless steel, alloy steel, etc |
| Seat lining | hard alloy, carbon pigeon, silver alloy, graphite compound |
| Suitable medium | water liquid,steam, oil, weak corrosive medium, etc. |
