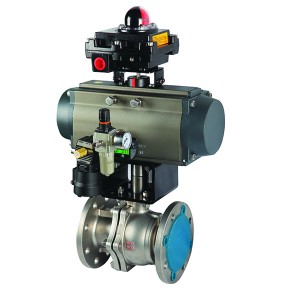

2 Pcs Pneumatic cut off O type ball valve

Short Description:

Pneumatic stainless steel ball valve material is on base of different material for corrosive medium,Pneumatic stainless steel ball valve is one type of ball valve assembly which is mounted with pneumatic actuator, achieving in the purpose of automatic control and remote control on the ball valve action.

There are two types of pneumatic actuators mounted with the Pneumatic stainless steel ball valve, one type is single action pneumatic actuator (which is also called spring return pneumatic actuator); the other type is double action pneumatic actuator. Normally, the clients select the spring return pneumatic actuator, because this type of pneumatic actuator needs only one air supply.

Send email to us

Product Detail

Product Tags

2 Pcs Pneumatic cut off O type ball valve Specification

Design: BS5351, ANSI B16.34, DIN, JIS

Sizes: 1/2″ ~8″ (15mm~200mm)
Nominal Pressure: PN10, PN16, PN25, CLASS150LB, CLASS300LB, JIS10K, JIS20K
Materials: Carbon steel, stainless steel, sanitary stainless steel, cast iron
Mounting Pad: ISO5211
Pneumatic Actuator Specifications:
Air Supply: 3bar~7bar

2 Pcs Pneumatic cut off O type ball valve Structure drawing

2 Pcs Pneumatic cut off O type ball valve technical date sheet

Nominal diameter DN（mm）		25	40	50	65	80	100	125	150	200	250	300
Rated flow coefficient Cv	Full chamber type	14	30	55	100	135	230	320	500	850	1300	1750
Rated flow coefficient Cv	Shrinkage chamber type	6	12	20	40	54	92	128	200	340	520	700
Double action pneumatic actuaror		Air supply pressure 400KPa
Model	Torque（N.M）	PTFE packing , metal seal allow differential pressure
ATD63	23.5	2.35	0.94
ATD75	46.5	5.0	2.84	1.49	0.57	0.33
ATD88	73.2			2.39	0.99	0.62
ATD100	106				1.54	0.99	0.30	0.19
ATD125	221						1.29	0.80	0.39
ATD160	453						2.84	1.79	0.89	0.47	0.26	0.14

Single action pneumatic actuator		Air supply pressure 400KPa
Model	torque（N.M）	PTFE packing , metal seal allow differential pressure
ATS75	26.5	0.19
ATS88	44	1.19	0.09
ATS100	60.7	3.97	1.59	0.81	0.11
ATS125	126			2.19	0.89	0.59
ATS160	269					1.39	0.53	0.34
ATS200	467						2.84	1.79	0.89	0.47	0.26	0.14

Actuator specification

Model/Style	Pneumatic piston acturator
	AT Series
	Single action, Double action
Usage	Adjustment, on-off
Air supply pressure or supply voltage	Air supply pressure ( spring scope) 400 Kpa G
Connector	Air tube adapter: RC1/4
Direct action	Gas pressure increase disk anti-clockwise rotation,valve close
Reaction	Gas pressure increase disk clockwise rotation,valve open
Input signal	40～20mA.DC（with E/P positioner）
Lag	≤1%FS（with positioner）
Linearity	2%FS（with positioner）
Working temperature	-10℃～+70℃
Coating	Green, acrylic polyurethane enamel
Option parts	1 Electric-Pneumatic (Pneumatic-pneumatic) positioner for regulating. 2 Valve position transmitter 3 solenoid valve 4 limited switch 5 Air filter reducer
